Power supply Switch mode with active PFC (Universal AC input from 90 to 260V)
Up to 3 transformers in interleave mode (model dependant)
Output stage Proprietary High-Speed High-Current 4th generation discrete Class D

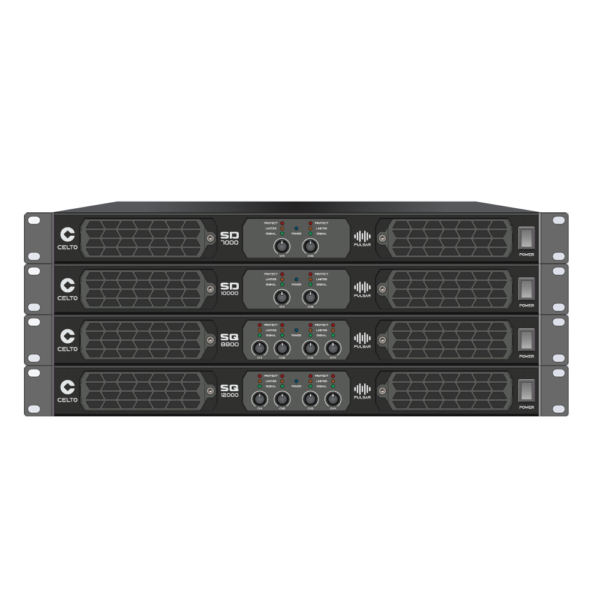

Model SD10000
RMS Output Power (1kHz, 1% THD, EIA standard) 2x 1800W / 8Ω
2x 3000W / 4Ω
2x 2600W / 2Ω
Frequency response 6~20,000Hz (-1dB)
Typical THD (1W, 20Hz~20kHz, 8Ω / 300W, 1kHz, 8Ω ) <0.03%  /  <0.09%
Signal to Noise Ratio >107dB(A)
Crosstalk (1kHz) >75dB
Input Impedance 20 kΩ (Balanced)
Maximum input  +20dBu
Amplifier slew rate >60V/us
Amplifier damping factor (8 ohms, 500Hz) >800 (internal)
Preamp Ultra low distortion opamps with audiophile MUSE Fine Gold capacitors
Nominal Voltage Gain x50 (34dB) on all models
Cooling Temperature regulated long life brush-less fans, front to back airflow
Protections Short-circuit, Over and Under-voltage, Over-current, Over-load, Temperature
Input connectors 4 Balanced NEUTRIK XLR
Output connectors 4 NEUTRIK SpeakON NL4MP
Operating Voltage 90~260V AC
Size (WxHxD) 482x45x421mm
Weight 10kg net
12.5kg gross
